| Nome da marca: | SUNCAR |
| Número do modelo: | CA2824350 282-4350 2824350 |
| Quantidade mínima: | Trial order acceptable |
| preço: | Negociável |
| Detalhes da embalagem: | PP bag inside, carton box outside |
| Condições de pagamento: | Western Union, L/C, T/T, , D/A, D/P |

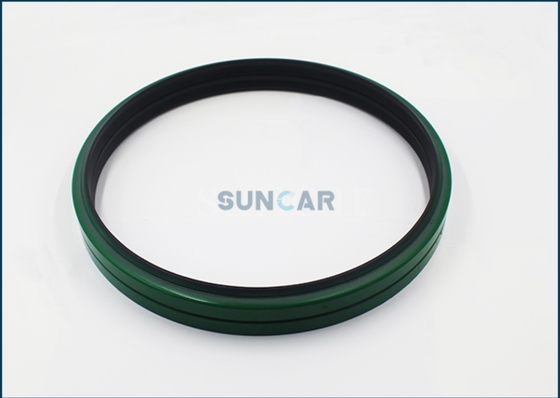

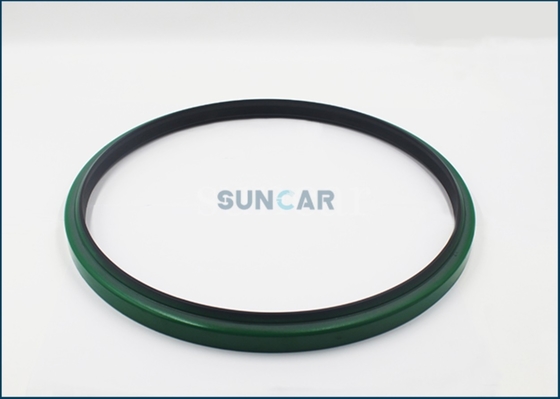

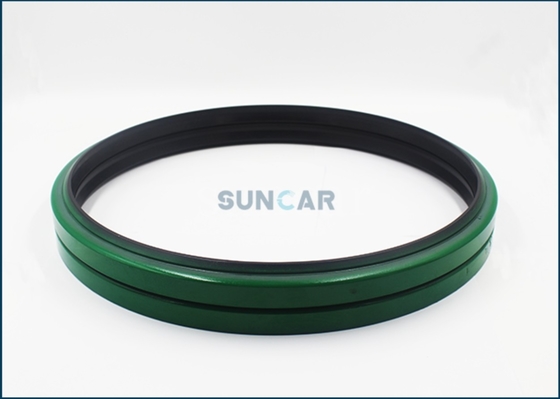

CA2824350 282-4350 2824350 Lip Seal Type Oil Seal For C.A.T. Motor Grader 160H 160H ES 160H NA 163H NA
| Product Name | C.A.T Oil Seal |
| Part Number | CA2824350 282-4350 2824350 |
| Model Number |
ARTICULATED TRUCK D350C, D40D; INTEGRATED TOOLCARRIER IT12B, IT14B, IT18B, IT18F, IT28, IT28B; LANDFILL COMPACTOR 816B; MARINE ENGINE 3116, 3126, 3126B, 3208, C7; MARINE TRANSMISSION 7211, 7221; MOTOR GRADER 120G, 120H, 12H, 12H ES, 12H NA, 140H, 140H ES, 140H NA, 143H, 160H, 160H ES, 160H NA, 163H NA, SOIL COMPACTOR 815, 815B; WHEEL DOZER 814, 814B; WHEEL LOADER 916, 918F, 920, 926, 930, 930R, 950, 950B, 950B/950E, 950F, 966C, 966D, 966F, 966R, 980, 980B; WHEEL SKIDDER 518, 518C, 528; WHEEL TRACTOR 613, 613B, 613C C.A.T |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic Oil Seal |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| Weight | 0.20kg |
| Axial Width | 11.60 mm |
| Seal OD | 101.8 mm |
| Shaft OD | 76.2 mm |
| Size | 76.2*101.8*11.60 |
Product Show:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 191-5973 | [2] | SHAFT-SUN GEAR (18-TEETH) | |
| 2 | 282-4350 | [2] | SEAL-LIP TYPE | |
| 3 | 8D-3591 | [2] | CARRIER-PLANETARY (57-TEETH) | |
| 4 | 030-8535 | [18] | BOLT-LOCKING (3/8-16X0.875-IN) | |
| 5 | 5M-2894 | [30] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 6 | 7D-7889 | [2] | GEAR-RING | |
| 7 | 7D-0035 | [8] | PLATE | |
| 8 | 7S-4571 | [2] | SEAL-O-RING | |
| 9 | 5P-8248 | [38] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 10 | 2J-3506 | [38] | NUT-FULL (3/4-10-THD) | |
| 11 | 9F-2247 | [2] | PLUG-PIPE | |
| 12 | 9X-8880 | [40] | BOLT (5/8-11X2-IN) | |
| 13 | 4D-3704 | [32] | WASHER-HARD (17X30X5-MM THK) | |
| 14 | 2P-3628 | [2] | SEAL-O-RING | |
| 15 | 236-7724 | [2] | RETAINER | |
| 16 | 102-2371 | [2] | SPROCKET (23-TEETH) | |
| 17 | 102-2370 | [2] | SPROCKET (23-TEETH) | |
| 18 | 6G-3212 B | [2] | SHIM PACK (INCLUDES 10-SHIMS) | |
| 19 | 1P-4693 | [4] | CUP-BEARING | |
| 20 | 5P-3490 | [2] | CONE-BEARING | |
| 21 | 8W-4142 | [2] | SHAFT-DRIVE | |
| 22 | 5D-0353 | [12] | BOLT-LOCKING (3/8-16X1-IN) |
Measures For Oil Leakage Due To Inadequate Oil Seal:
1. Master and recognize the basic knowledge of fake and inferior products, and purchase high-quality and standard oil seals.
2. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.
3. The oil seals applied to machinery generally have to be inspected, maintained and maintained when the general working conditions are poor, the ambient temperature difference is large, the dust is excessive, and the vibration of the machine tool frequently changes the stress condition of the machine parts.
4. If the shaft diameter and bearing are seriously worn; The rubber seal oil is aging or the spring is invalid, etc., repair and replace the corresponding parts in time.
|
|
